SP200 Compact model

SP201 Extension model

SP202 High Temp. model

Water: 1~150 cm/s

Oil: 3~300 cm/s

Water: 1~150 cm/s
Oil: 3~300 cm/s

Water: 1~150 cm/s
Oil: 3~300 cm/s

-20 ~ 80˚C

-20 ~ 80˚C

-20 ~ 80˚C

-20 ~ 80˚C

-20 ~ 80˚C

-20 ~ 120˚C

Open Collector : NPN / PNP (<400mA)
Relay : 1A/30Vdc, 0.3A/125Vac (NO or NC)

100 bar (max.)

100 bar (max.)

100 bar (max.)

Flow velocity below set point- Red LED on, Open
Flow velocity equals set point- Yellow LED on, Close
Flow velocity above set point- 4 Green LED to indicate flow speed, Close

SUS304 / 316 / 316L

SUS304 / 316 / 316L

IP67

Approx.15 Sec

Approx.15 Sec

Approx.15 Sec

G1/2, G1/4, NPT1/2

G1/2, NPT1/2

G1/2, G1/4, NPT1/2

19 ~ 30Vdc

50mA (max.)

3-wire NPN/PNP
Power-brown
Grounding-blue
Output-black

Gasket, 2m Cable

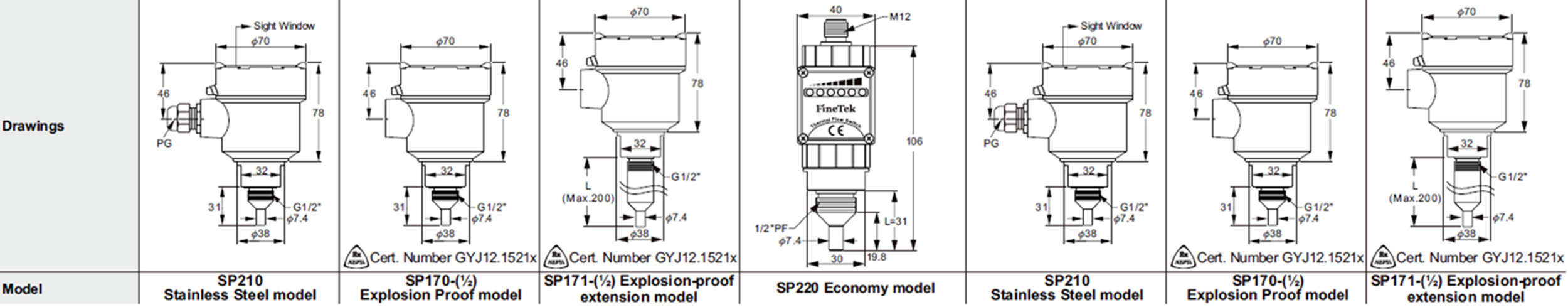

SP220 Economy model

SP210
Stainless Steel model

SP170-(½)
Explosion Proof model

SP171-(½) Explosion-proof
extension model

Water: 1~150 cm/s

Oil: 3~300 cm/s

Water: 1~150 cm/s
Oil: 3~300 cm/s

-20 ~ 80˚C

-20 ~ 80˚C

-20 ~ 80˚C

-20 ~ 80˚C

Open Collector : NPN / PNP
Relay : 1A/30Vdc, 0.3A/125Vac (NO or NC)
(<400mA)

Relay: 5A/250Vac

Relay: 3A/250Vac

100 bar (max.)

100 bar (max.)

Flow velocity below set point- Red LED on, Open
Flow velocity equals set point- Yellow LED on, Close
Flow velocity above set point- 4 Green LED to indicate flow speed, Close

PC

SUS304

SUS304 / 316 / 316L

IP65

IP67

Approx.15 Sec

G1/2, NPT1/2

19 ~ 30Vdc

50mA (max.)

60mA (max.)

3-wire NPN/PNP
Power-brown
Grounding-blue
Output-black

5-wire Relay Output
Power- red
Grounding- black
COM- white
NC- yellow
NO- blue

+             -                          NC         C           NO

Gasket, 2m Cable

Gasket, 2m Cable

ㅡ

ㅡ

Sensitivity and Alarm setting not available.

ㅡ

ㅡ

ㅡ
