Technical data

 Version

 Wall mounting

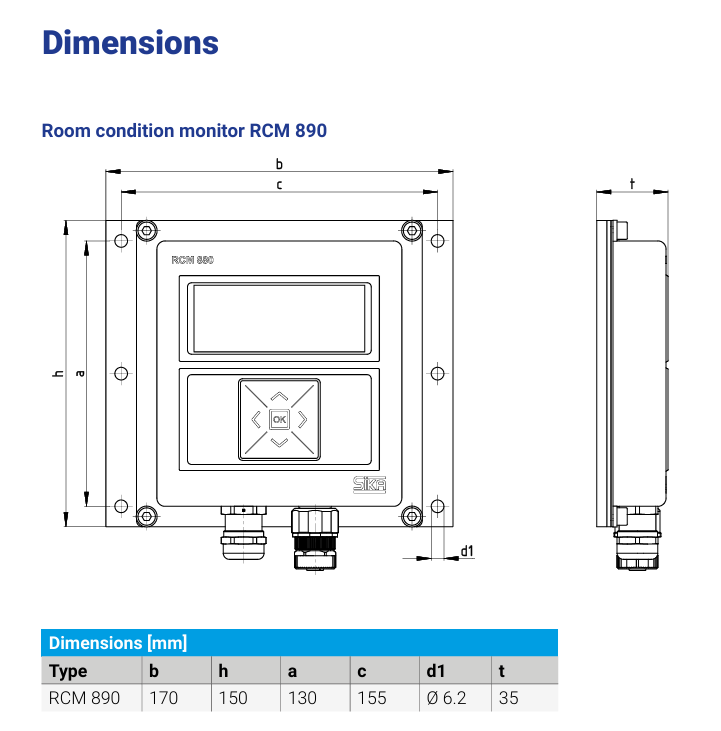

 Dimensions (W x H x D)

 → Housing with mounting plate

 170 mm x 150 mm x 35 mm

 Display

 → Type

 → Backlight

 → Size (W x H)

 → Resolution

 Dot matrix graphic display

 Yes (adjustable)

 83 mm x 33 mm

 256 x 100 Pixel

 Indication accuracy

 0.01

 Operating elements

 5 capacitive keys

 Measuring rate

 1 s

 Ambient temperature

 -20...70 °C

 Storage temperature

 -20...70 °C

 Degree of protection EN 60529

 IP65, plug & cable connected

 Electrical data

 Power supply

 24 VDC (16…32 V)

 Current consumption

 <100 mA

 Input

 Measuring element

 Digital Multi sensor for humidity, temperature and pressure

 Accuracy

 See technical data - Multi sensor

 Electrical connection

 4-pin plug connector M12 x 1

 Output

 Number of channels
 Signals

 3

 0...20 mA or 4…20 mA or 0…10 V or 0…5 V

 Measuring range

 → Humidity

 → Temperature

 → Pressure

 0…100 % RH

 -40…85 °C

 300…1200 mbar abs.

 Accuracy

 16 bit / ±0.1 % of range ±1 digit @ 25 °C

 Signal error

 → Error Analog/Digital Converter

 → General error

 → Underrange

 → Overrange

 → Sensor error

 4...20 mA

 0 mA

 <3.5 mA

 3.8 mA

 20.5 mA

 >21 mA

 0...20 mA

 0 mA

 0 mA

 0 mA

 20.5 mA

 >21 mA

 0...10 V

 0 V

 0 V

 0 V

 10 V

 0 V

 0...5 V

 0 V

 0 V

 0 V

 5 V

 0 V

 Electrical connection

 Cable gland M16 x 1.5 (cable outer diameter 5…10 mm)

 Spring clamp terminal:

 cable cross section 0.2...1.5mm² (without wire ferrule)

 cable cross section 0.25...1mm² (with wire ferrule)

 Load

 → Current output

 → Voltage output

 Max. 500 Ω

 Min. 1.5 kΩ
