Measurement

 Particle

 Measuring range

 S130: 0.3 < d ≤ 5.0 μm

 S132: 0.1 < d ≤ 5.0 μm

 Others

 Device comes pre-configured Configuration

 can be done via on-screen touch

 Measuring channels

 S130:

 CH1: 0.3 < d ≤ 0.5 μm

 CH2: 0.5 < d ≤ 1.0 μm

 CH3: 1.0 < d ≤ 5.0 μm

 CH4: 5.0 μm < d (configurable)

 S132:

 CH1: 0.1 < d ≤ 0.5 μm

 CH2: 0.5 < d ≤ 1.0 μm

 CH3: 1.0 < d ≤ 5.0 μm

 CH4: 5.0 μm < d (configurable)

 Storage

 30 million measurement values (optional)

 Electrical connection

 3X M12

 Process connection

 6 mm quick connect (pressurized version),

 barb connection (ambient version)

 according ISO 21501-4

 30 ... 70 % of d > 0.3 um,

 90 ... 110 % of d >= 0.45 um

 S132:

 30 ... 70 % of d > 0.1 um,

 90 ... 110 % of d >= 0.3 um

 Weight

 S130: 1.9 kg

 S132: 3.2 kg

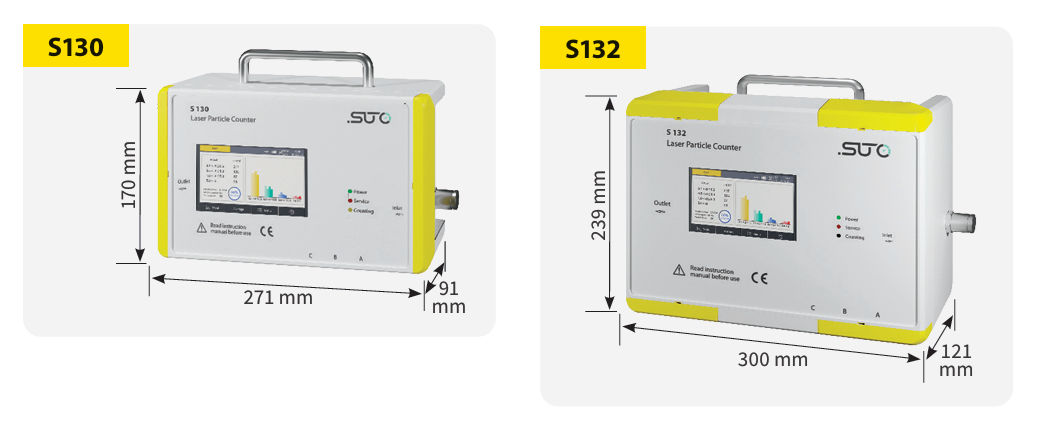

 Dimensions

 S130: 271 x 205 x 91 mm

 S132: 300 x 240 x 120 mm

 Medium

 Compressed air and gases free of corrosive,

 aggressive, caustic and flammable constituents

 Ambient humidity

 0 ... 90 % rH

 Alarm

 Switch output, normally open,

 max. 40 VDC, 200 mA

 Transport

 temperature

 30 ... +70 °C Without display

 -10 ... +60 °C with display

 Fieldbus

 Protocol

 Modbus/RTU,

 Modbus/TCP (with Display version)

 Supply

 Voltage supply

 24 VDC / 10 W (without Display)

 24 VDC / 20 W (with Display)

 Current consumption

 420 mA (without Display)

 840 mA (with Display

 Data interface

 USB

 USB Micro with OTG support
