Signal / Interface & Supply

 General data

 Input signals

 Display

 Modbus signal input

 • Modbus/RTU Master

 • Modbus/TCP Master (up to 150

     measuring channels)

 Integrated

 7” high-resolution graphic display,

 Resolution: 1280 x 800 pixels touch screen

 Analog input (Optional)

 0 ... 20 mA/4 ... 20 mA, 0 ... 10 V/0.5 ... 4.5 V

 Up to 2 analog input modules,

 each module has 4 analog input channels.

 Storage

 Internal, 10 GB, 530 days typical

 (example: 50 channels @ 1s sampling)

 Digital input (Optional)

 Up to 2 digital input modules,

 each module has 4 digital input channels.

 Material

 Output signals

 Miscellaneous

 Alarm output

 Built-in 2 relays

 Up to 2 relay modules (optional),

 each module has 4 relays

 Protection class

 IP65

 Modbus signal output

 • 1 x Modbus/RTU(Slave)

 • 1 x Modbus /TCP

 Cable entry

 • 3 x M20 PG connector (each for 2 cables, Ø5 ... 6 mm)

 • 4 x M12 PG connector (each for 1 cable, Ø5 ... 6 mm)

 Data interface

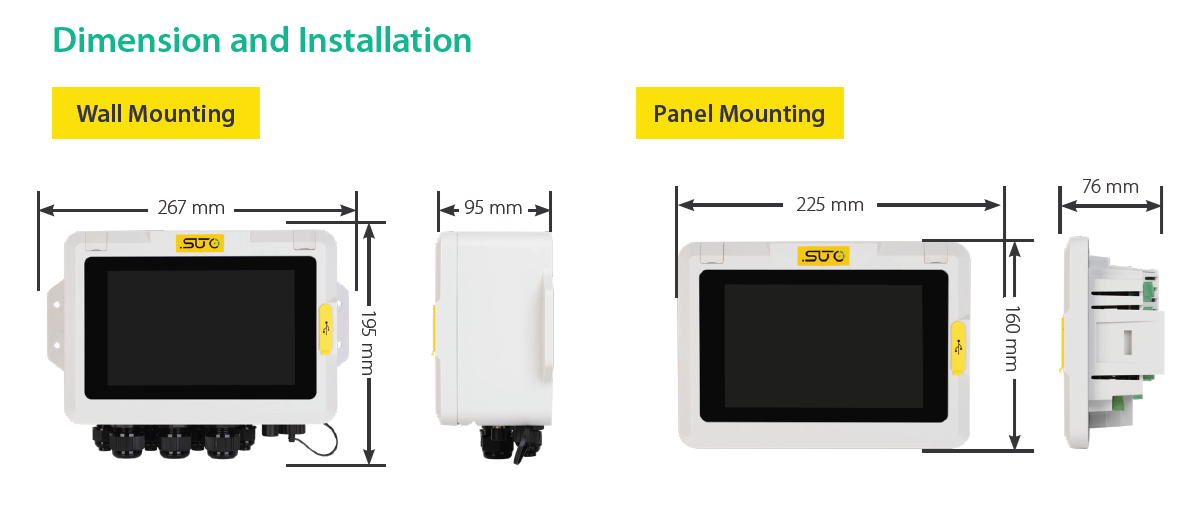

 Installation

 Panel or wall mounting

 Connection

 • Modbus/TCP Master (Ethernet)

 • Modbus/TCP Slave (Ethernet)

 • Modbus/RTU Master ( RS 485)

 • Modbus/RTU Slave ( RS 485)

 • USB-C port

 Approvals

 CE, FCC

 Weight

 1 ... 1.8 kg (depending on the

 installed options and housing)

 Power supply

 Environment Data

 AC version

 85 ... 305 VAC, 60W, 50/60Hz

 Operating temperature

 0 ... +45 °C

 DC version

 18 ... 30 VDC, Max. 7 A

 Operating humidity

 <90%, no condensation

 Sensor supply

 Transportation temperature

 -20 ... +60 °C

 AC version

 24 V, max. 50 W

 Storage temperature

 -20 ... +70 °C

 DC version

 24 V, max. 150 W
