Signal / Interface & Supply

 General data

 Data logger

 Configuration

 Storage

 Internal, 100 million values

 PC Software

 S4C-Display software

 Sampling rate

 Optional >=1s, Max 59 mm: 59 ss

 Display

 Input signals

 Integrated

 Size: 5” high-resolution graphic display

 Resolution: 800 x 480 pixels touch screen

 16 x RS-485 Modbus RTU Sensors

 2 x 0 ... 20 mA / 4 ... 20 mA / 0 ... 10V

 Material

 Analog input

 2 x 0/4 ... 20 mA; 2 x 0 ... 10 V; 2 x pulse

 Housing

 PC + ABS (Compact version)

 PC (Flex version)

 Pulse input

 100 Hz maximum; 28 V, 10 mA

 Miscellaneous

 Output signals

 Electrical connection

 Screw-Terminal connectors

 Analog / Pulse output

 4 ... 20 mA signal and pulse signal

 of sensors can be looped through

 the display by using the connection board

 Protection class

 IP65

 Alarm output

 2 relays, 230 VAC, 3 A, NC

 Dimensions

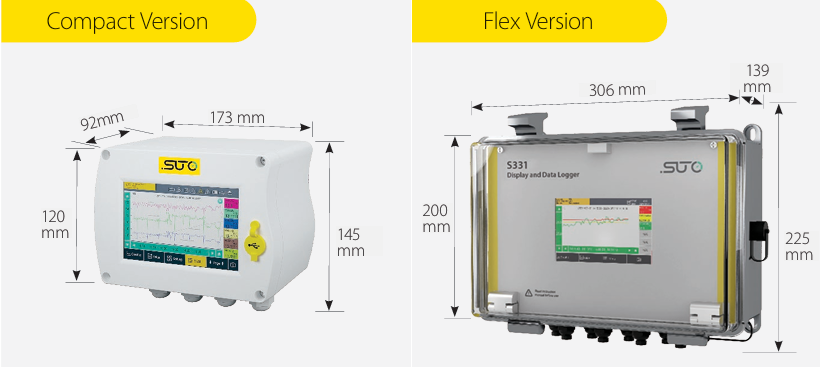

 See dimensional drawing

 Field bus Interface

 Cable entry diameter

 4.5 ... 8 mm

 Protocol

 Modbus/TCP (Ethernet),

 Modbus/ RTU ( RS 485)

 Cable

 Supply: AWG 12 ... AWG 24, 0.2 ... 2.5 mm²;

 Signals: AWG 16 ... AWG 28, 0.14 ... 1.5 mm²

 Electrical data

 Weight

 0.52 kg (Compact version)

 2.12 kg (Flex version)

 Power supply

 Compact            100 ... 240 VAC, 20 VA

 version               (option, A1663)

                            18 ... 30 VDC, 20 W

                            (option, A1664)

 Flex                     85 ... 305 VAC, 60 W

 version               (option, A1676)

                            18 ... 30 VDC, 60 W

                            (option, A1677)

 Ambient temperature

 0 ... +50°C

 Sensor supply

 24V, 10W (Compact version)

 24V, 50W (Flex version)

 Data interface

 Connection

 Modbus/TCP (Ethernet),

 Modbus/ RTU ( RS 485), USB
