Series

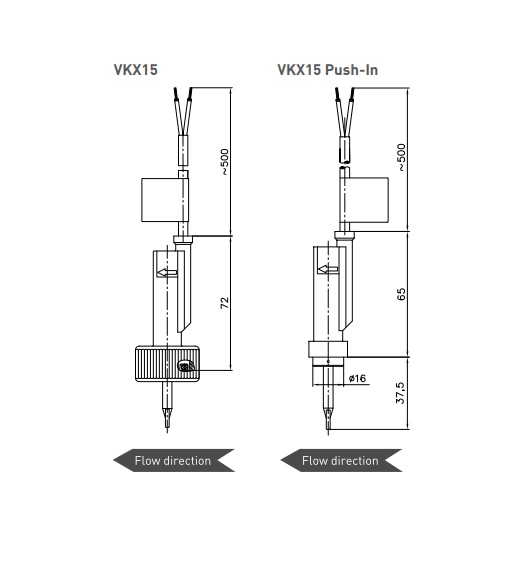

 VKX15

• Cost optimized version

• Pipe tee with threaded or soldering ends

 Technical data

 Switching function

 Contact closes at increasing flow

 Setpoint

 2.5 ±0.5 l/min*

 Max. flow rate

 → Pipe tee G½ male

 → Pipe tee G¾ male

 → Pipe tee 15 mm soldering connection

 → Pipe tee 22 mm soldering connection

 40 l/min

 40 l/min

 40 l/min

 34 l/min

 Nominal diameter

 DN 15

 Pressure rating

 PN 10

 Temperature ranges

 Medium

 -20...100 °C

 Ambient

 -20...70 °C

 Electrical data

 Electrical connection

 0.5 m PVC jacket cable

 Degree of protection EN 60529

 IP65

 Max. Switching current

 Max. 1 A

 Max. Rating

 Max. 26 VA, 20 W

 Max. Switching voltage

 230 VAC, 48 VDC or 24 VAC, 42 VDC

 Protection class EN 60730-1

 Class II or Class III

 Approvals **

 WARS

 TUV
