Technical data

 Switching function

 Change over contact

 Pressure rating (Test pressure)

 Max. 6 bar (10 bar)

 or max. 10 bar (15 bar)

 Temperatures

 Medium

 Max. 100 °C

 Ambient

 Max. 85 °C

 Electrical data

 Max. contact rating

 24 VDC, 5 A resistive load

                4 A inductive load

 60 VDC, 1 A resistive load

                0.5 A inductive load

 250 VAC, 10 A resistive load

                  10 A inductive load

 Degree of protection EN 60529

 IP54

 Protection class EN 60730-1

 Class I

 Approvals

 DNV GL

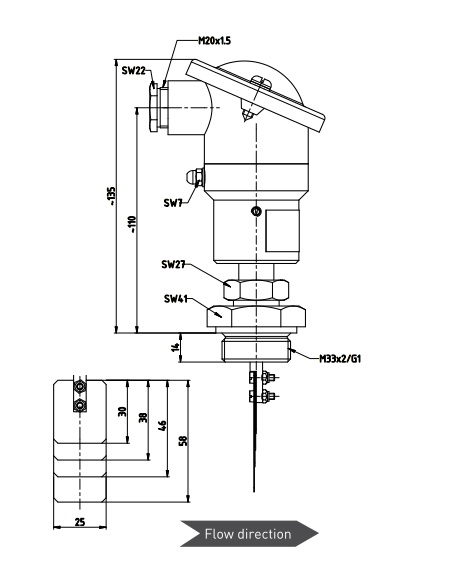

 Size of pipe tee

 Paddle to select**

 Set point ranges [m3 /h]*

 Increasing flow ON

 Decreasing flow OFF

 DN 25

 25 x 30 mm

 1.0...1.25

 1.05...1.2

 DN 32

 25 x 38 mm

 1.7...2.05

 1.6...1.95

 DN 40

 25 x 46 mm

 2.2...2.55

 2.1...2.45

 DN 50

 25 x 58 mm

 3.25...3.85

 3.15...3.75
