Technical Data

 Size

 From ½" to 1"

 Service

 For "Non-Corrosive" liquid fluid available

 Material

 Wetted parts 316 stainless steel

 Temperature Limit

 -20 to 150 ℃

 Pressure Limit

 7.0 MPa (70 kg/㎠)

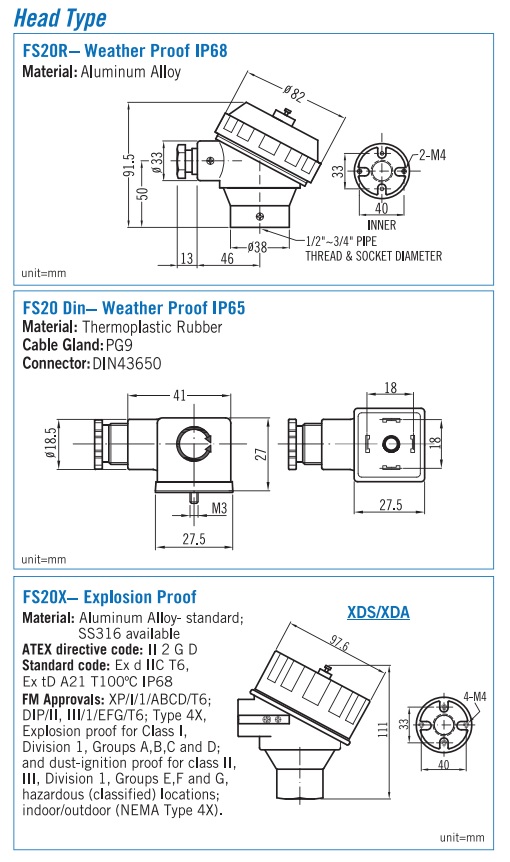

 Enclosure Housing

 FS20R - Weather proof

 FS20DIN - Weather proof

 FS20X - Explosion proof

 Switch Function

 SPDT micro switch

 Switch Rating

 3A/250 VAC, 3A/30 VDC, 0.4A/125 VDC

 Conduit Connection

 Female ½", ¾" G, NPT, and M20×P1.5 or M25×P1.5 available

Flow Rate Table

 Process Connection

(Female with Tee Fitting)

Flow Rates Required Water at 25 ℃

Dimensions for Tee

Max. Flow Rate

@2 bars

Acuate (ON) l/hour

Deacuate (OFF) l/hour

A (mm)

B (mm)

REMARK

½" NPT

380 ~ 460

150 ~ 210

52

45

-

¾" NPT

1" NPT

550 ~ 610

140 ~ 240

64

67

47

49

¾" Paddle & ¾" Tee

¾" Paddle & 1" Tee

1" NPT

930 ~ 1010

750 ~ 780

72

49

-
