Technical specifications

 Power supply voltage

 10 ... 28 V DC

 Supply current (OFF state)

 max. 10 mA

 Switched current

 max. 10 A (continuously)

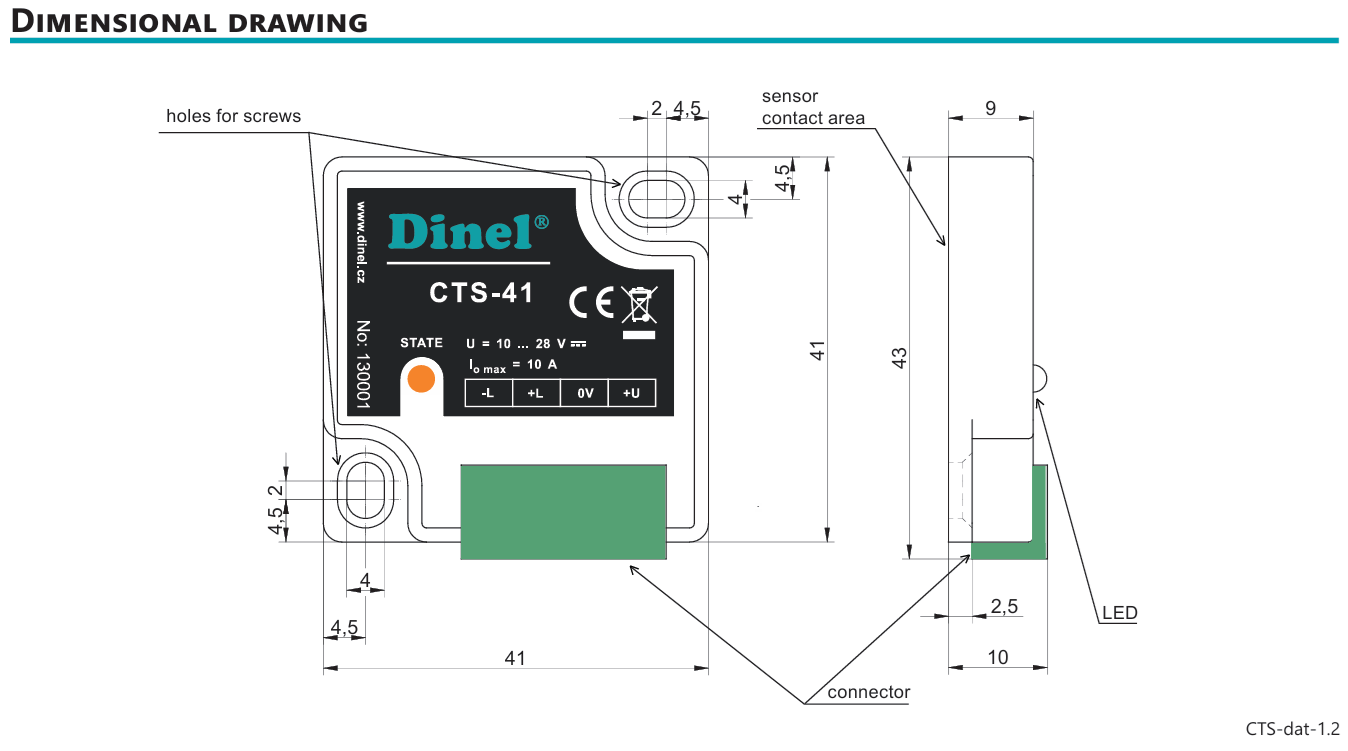

 Dimensions

 41 x 43 x 10 mm

 Covering wall maximum thickness

 30 mm (material: wood)

 Sensitivity

 to hand contact

 Ambient temperature range

 -10 ... +50 °C

 Weight

 approx. 60 g
