레벨스위치

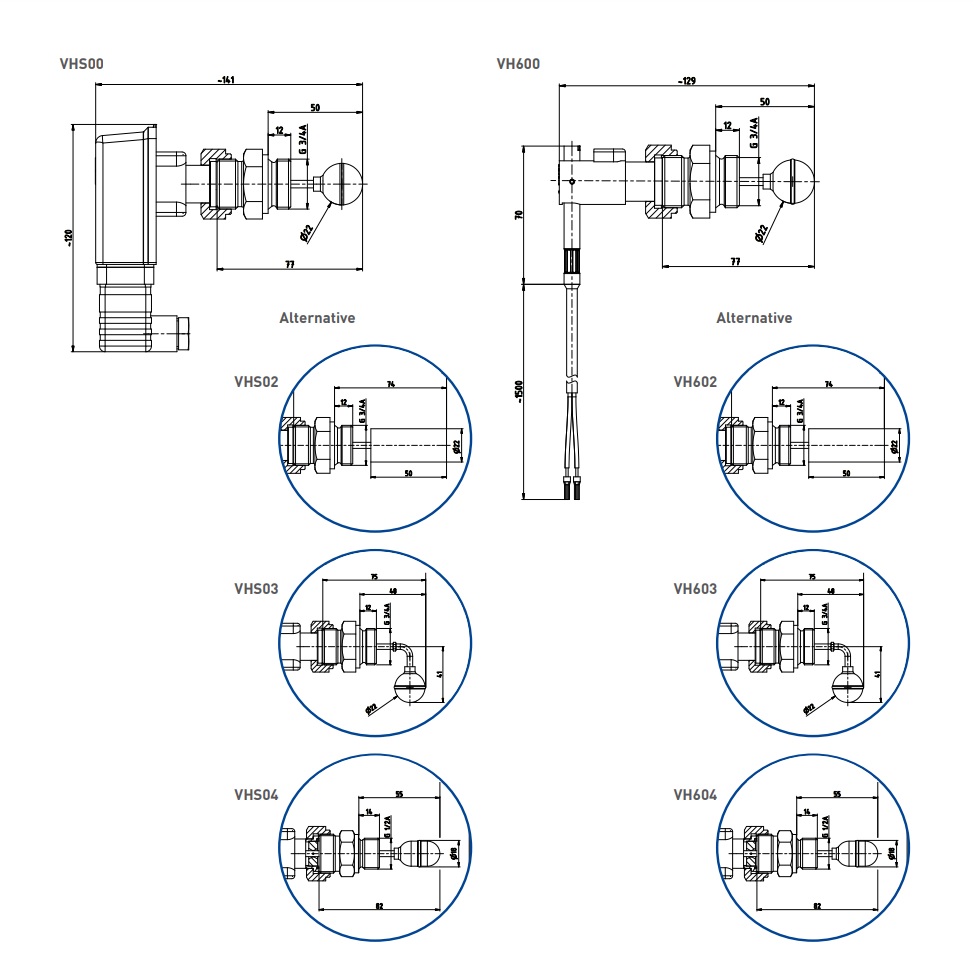

VHS00, VH602 / 플로트형
- 제조사 : SIKA Dr. Siebert & Kühn GmbH & Co. KG
- 제조국 : Germany
•male thread G¾ or G½ 측면설치
•쉬운 설치방법
•황동, 스테인레스 재질
•쉬운 설치방법
•황동, 스테인레스 재질
DOWNLOAD
제품사양
| Technical data | |
|
Switching function
|
Contact → opens with falling level |
| Activation point, related to middle axis (water, 20 °C) |
-4...0 mm
|
|
Hysteresis |
Approx. 1...4 mm (elbow version different) |
| Pressure rating | PN 25 |
| Minimum medium density | |
| PVDF-float | 0.78 kg/dm³ |
| Stainless steel cylinder float | 0.83 kg/dm³ |
| Temperature ranges | |
| Medium | -10...110 °C |
| Ambient → VHS → VH6 → VH6...X |
-25...80 °C |
| Electrical data | |
|
Electrical connection → VHS
→ VH6 |
Plug connector
1.5 m PVC jacket cable |
| Max. switching current | 1 A |
| Max. switching voltage | 230 VAC, 48 VDC |
| Max. rating | 26 VA, 20 W |
| Degree of protection EN 60529 |
IP65
|
| Protection class EN 60730-1 | Class II |
| Options | |
| For type | See order code |
|
VHS
|
→ Plug connector DIN EN 175301-803-A incl. cable socket with 2 LEDs for switching voltages 24 V...230 V AC / DC ±20 %, ambient temperature -20...70 °C → or 4-pin sensor plug M12 x 1 |
| → For use in potentially explosive atmospheres (Version VH...X) | |
