질량유량계
RED-Y Smart
- 제조사 : Vogtlin Instruments AG
- 제조국 : Switzerland
•디스플레이 내장
•최대 가스 10종까지 측정가능
제품사양
| Technical Data ‹red-y smart series› | |||
| Instrument types | |||
| smart meter GSM Thermal mass flow meter |
smart controller GSC Thermal mass flow controller |
OEM version For customer-specific requirements | |
| Instrument versions | |||
| ‹Standard› The economic solution |
Accuracy: ± 1.0 % of full scale* Turndown ratio: 1 : 50 | ||
| ‹Hi-Performance› With highest accuracy and turndown ratio (available for GSM < 200 ln/min / GSC < 150 ln/min (air)) |
Accuracy: ± 0.3 % of full scale + ± 0.5% of reading*
| ||
| Measuring ranges | |||
| (Air/Full scale freely selectable) | Type | Measuring range (air) | Connection |
|
red-y smart meter GSM
|
GSM-A GSM-B GSM-C GSM-D |
from 0 ... 25 mln/min to 0 ... 600 mln/min from 0 ... 600 mln/min to 0 ... 6000 mln/min from 0 ... 6 ln/min to 0 ... 60 ln/min from 0 ... 60 ln/min to 0 ... 450 ln/min |
G¼" G¼" G¼" G½" |
|
red-y smart controller GSC
|
GSC-A GSC-B GSC-C GSC-D |
from 0 ... 25 mln/min to 0 ... 600 mln/min from 0 ... 600 mln/min to 0 ... 6000 mln/min from 0 ... 6 ln/min to 0 ... 60 ln/min from 0 ... 60 ln/min to 0 ... 450 ln/min |
G¼"
G¼" G¼" G½" |
| Performance data | |||
|
Media (real gas calibration)
|
Air, O2*, N2*, He, Ar, CO2, H2, CH4, C3H8 (other gases and gas mixtures on request) *O2 & N2 are calibrated with air | ||
| Response time | Meter: 50 ms; Controller: 150 ms | ||
| Repeatability | ± 0.2% of full scale | ||
| Longterm stability | < 1% of measured value / year | ||
| Power supply | 24 Vdc (18 – 30 Vdc), 15 Vdc on request | ||
| Current consumption | Meter: max. 100mA; Controller: max. 250mA | ||
| Operation pressure | 0.2 – 11 bar a (GSC with valve type 4.5 and 8 max. 8 bar a) | ||
| Temperature (environment/gas) | 0 – 50°C | ||
| Materials | Anodized aluminium, optional stainless steel electropolished | ||
| Seals | FKM, NBR, optional EPDM | ||
| Pressure sensitivity | < 0.2% / bar of reading (typical N2) | ||
| Temperature sensitivity | < 0.025% FS measuring range type / °C | ||
| Warm-up time | < 1 sec. for full accuracy | ||
| Integration | |||
| Output signals analog | 0..20 mA, 4..20 mA, 0..5 V, 1..5 V, 0..10 V, 2..10 V | ||
| Output signals digital | RS-485; Modbus RTU (Slave); Lab View-VIs available / option: ProfiBus DP-V0, DP-V1 | ||
|

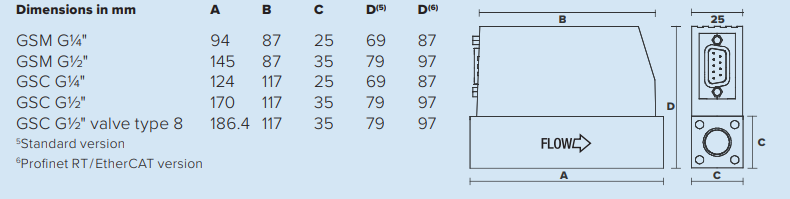

Process connection
|
G¼” (BSPP* female) up to 60 ln/min, G½» (BSPP* female) up to 450 ln/min *British Standard Pipe Parallel | ||
| Inlet section | None required | ||
| Electrical connection | Sub D plug, 9 pole | ||
| Mounting orientation | Any position (consult manufacturer above 5 bar or vertical mounting) | ||
| Safety | |||
| Test pressure | 16 bar a | ||
| Leak rate | < 1 x 10-6 mbar l/s He | ||
| Environmental protection | IP-50 | ||
| EMC | EN 61326-1 | ||
