Technical specification

 Supply voltage

 CLM – 40N–40–_–I

 CLM – 40N–40–_–U

 CLM – 40N–40–_–CAN

 9 ... 30 V DC

 12 ... 30 V DC

 9 ... 30 V DC

 Type of Output

 CLM – 40N–40–_–I

 CLM – 40N–40–_–U

 CLM – 40N–40–_–CAN

 4 ... 20 mA (Limits 3,9 ... 20,5 mA)

 0 ... 10 V (Limits 0 ... 10,2 V)

 Protocol CAN SAE j1939 (FMS)

 Current consumption

 CLM – 40N–40–_–I

 CLM – 40N–40–_–U

 CLM – 40N–40–_–CAN

 3,75 ... 20,5 mA

 Max. 5 mA

 Typ. 10 mA (Max. 16 mA)

 Load resistance

 CLM – 40N–40–_–I

 CLM – 40N–40–_–U

 R z ≤ (U - 9) / 20,5 [kΩ; V]

 R ≥ 5 kΩ

 Nolinearity

 Max. 1 %

 Temperature error

 Max. 0,05 % / K

 Voltage error

 Max. 0,3 μA/V

 Internal resistance / Electric strength

 (Electrode – Housing)

 1 MΩ / 200 V DC

 Coupling capacity /

 / Electric strength

 (Housing – Supply leads)

 CLM – 40N–40–_–I

 CLM – 40N–40–_–U

 CLM – 40N–40–_–CAN

 91 nF / 500 V DC

 50 nF / 500 V DC

 49 nF / 500 V DC

 Coupling capacity / Electric strength

 (Electrode – Supply leads)

 47 nF / 500 V DC

 Protection class

 IP 68

 Ambient temperature range

 - 40 ... +85 °C

 Cable

 CLM – 40N–40–_–I

 CLM – 40N–40–_–U

 CLM – 40N–40–_–CAN

 PUR 2x1 mm2

 PUR 3x0,75 mm2

 PUR 2x2x0,25 mm2, shielded

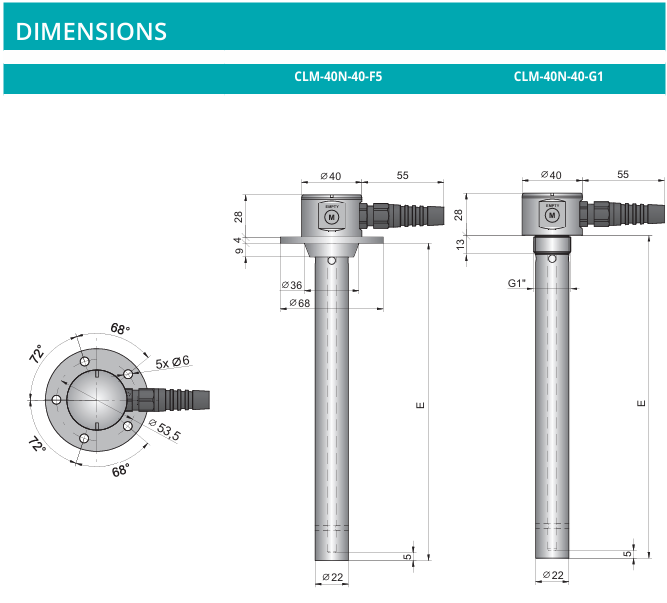

 Process connection

 CLM – 40N–40–F5–_

 CLM – 40N–40–G–_

 Flange with 5 holes

 Thread G 1“

 Cable gland

 CLM – 40N–40–_–_–V

 CLM – 40N–40–_–_–H

 cable gland with spiral relief

 cable gland for protective hose (AD 10,0)

 Weight (exclude electrode)

 Approx. 0,3 kg

 Error indicatioan

 Settings

 CLM – 40N–40–_–I

 CLM – 40N–40–_–U (0..10 V)

 CLM – 40N–40–_–U (0..5 V)

 3,75 mA

 10,5 V

 5,5 V
