레벨미터
ULM-54 / 초음파형
- 제조사 : Dinel, s.r.o
- 제조국 : Czech Republic
•내, 외부 환경에서의 비 접촉식 수위 측정용
•하부 또는 상부 연결구를 이용하여 설치 용이
•HART 통신가능
제품사양
Technical specifications | ||
Measuring range 1) | ULM–54N–02 ULM–54N–06 ULM–54N–10 | 0,15 ... 2 m 0,25 ... 6 m 0,4 ... 10 m |
Supply voltage | ULM–54N– _ _ | 18 ... 36 V DC |
Output | ULM–54N–_ _–_–I | 4 ... 20 mA, HART® |
Accuracy (within the total range) | 0,15 % | |
Temperature error | max. 0,04 % / K | |
Ambient temper- ature range | ULM–54N–02 ULM–54N–06 ULM–54N–10 | -30 ... +70 °C -30 ... +70 °C -30 ... +60 °C |
Max. operation overpressure (on transmission surface) | 0,1 MPa | |
Protection class | IP68 | |

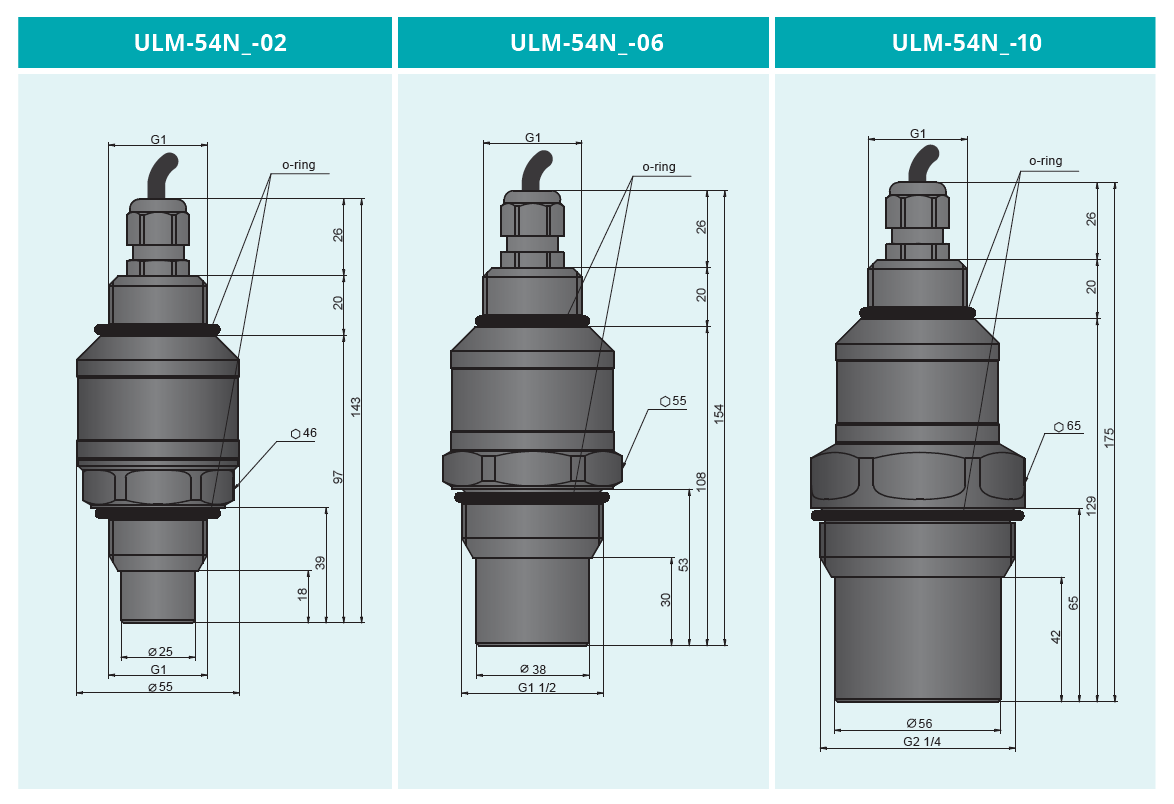

Mechanical connection | ULM–54N–02 ULM–54N–06 ULM–54N–10 | screwing with thread G 1’’ (upper or lower threads) screwing with thread G 1½’’ and upper thread G 1’’ screwing with thread G 2¼’’ and upper thread G 1’’ |
Recommended cable | ULM–54N–_ _–_–I | PVC 2 x 0,75 mm2 |
Material of housing | All-plastic PP design with PVDF transmitter | |
● In case the level of bulk-solid materials is measured, the measurement range is reduced.
