임펠러유량계
임펠러유량계
이전IP100/200
- 제조사 : SeaMetrics Incorporated
- 제조국 : U.S.A
체별 호환가능 재질 선정
형 파이프내 유체 측정시 적합

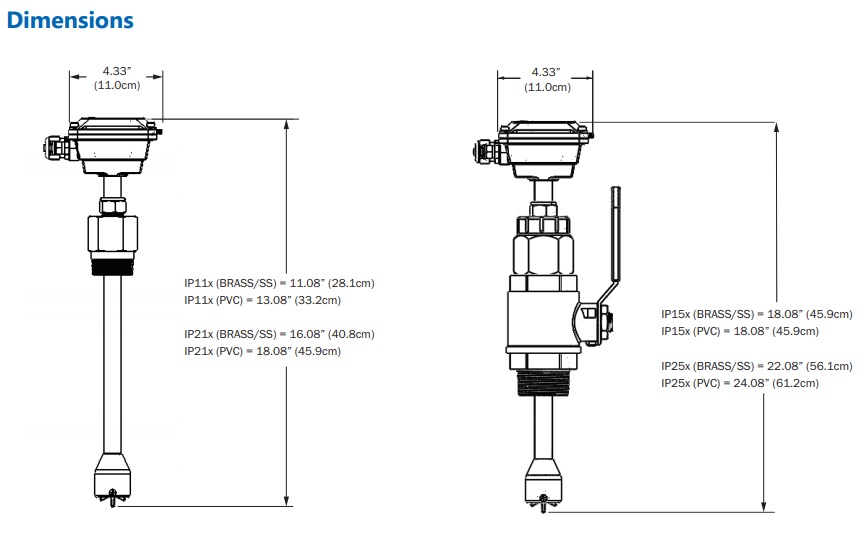

제품사양
| Specifications* | |||||
| Pipe Size | 3” to 40” | ||||
| Power | Low Power: 6-36 Vdc/< 2 mA Micropowered (-04 Option): 3.1-16 Vdc/60 μA @ 3.6 Vdc | ||||
| Sensor | Low Power: Digital Magnetoresistive Micropowered (-04 Option): Giant Magnetoresistance (GMR) | ||||
|
Materials
|
Housing | Powder-coated cast aluminum | |||
| Tubing/Fitting/Sensor Housing | Brass, PVC, or 316 Stainless Steel | ||||
| Rotor | PVDF (Kynar®) | ||||
| Shaft | Kynar® /Tungsten Carbide (Kynar® /Ceramic or Kynar®/Silicon Carbide optional) | ||||
| Bearings | Ruby jewel | ||||
| O-Ring (15x/25x only) | EDPM | ||||
|
Valve Assembly for:
|
IP11x/21x (Brass/SS) | IP11x/21x (PVC) | IP15x/25x (Brass/SS) | IP15x/25x (PVC) | |
| None | None | Bronze (316SS optional) | Uses gate valve | ||
| Fitting Size Required | 1.5” FNPT | 2” FNPT | 2” FNPT | 2” FNPT | |
|
Maximum
|
Pressure | Brass/SS: 200 psi (14 bar) PVC: 150 psi (10 bar) | |||
| Temperature | Brass/SS: 200˚ F (93˚ C) PVC: 130˚ F (55˚ C) | ||||
| Flow Velocity | 0.3 to 30 ft/sec (0.9 to 9.14 m/sec) | ||||
| Accuracy | ± 1.5% of full scale | ||||
| Output Transistor Maximum Current Sinking | 150mA (low power version only) | ||||
|
Cable
|
#22 AWG 3-con, 18’ (6m); 2,000’ (610m) maximum cable run Note: 50’ (15m) maximum for battery powered or micropowered versions. | ||||
| Environmental | See meter mounted electronic specification for rating. | ||||
| Regulatory | CE mark | ||||
*Specifications subject to change. Please consult our website for the most current data (www.seametrics.com).
Kynar is a registered trademark of Arkema, Inc.
Flow Range
|
|
3” |
4” |
6” |
8” |
10” |
12” |
16” |
18” |
24” |
30” |
36” |
40” |
|
GPM Min (.3ft/sec) |
6.6 |
12 |
27 |
47 |
73 |
106 |
188 |
238 |
422 |
660 |
951 |
1,174 |
|
LPM Min (.09m/sec) |
24 |
45.4 |
102 |
178 |
276 |
401 |
712 |
901 |
1597 |
2498 |
3600 |
4444 |
|
GPM Max (30ft/sec) |
660 |
1200 |
2700 |
4700 |
7370 |
10600 |
18800 |
23800 |
42200 |
66000 |
95100 |
117400 |
|
LPM Max (9.1m/sec) |
2498 |
4542 |
10220 |
17791 |
27898 |
40125 |
71166 |
90093 |
159744 |
249837 |
359993 |
444407 |
Approximations based on Schedule 40 pipe.
