Series

 VTY15

• Space-saving due to compact design
• Pressure loss optimized
• Low wear and extremely long service life due to high-quality bearings

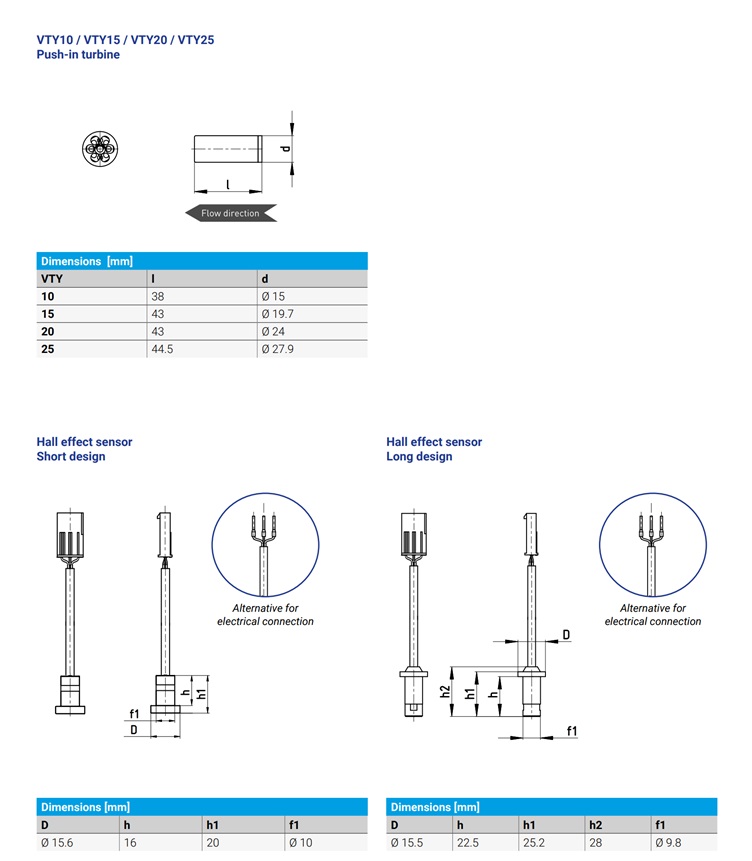

 ① Push in turbine

 Flow range

 1...45 l/min (60...2,700 l/h)

 Accuracy

 ±(1 % of range + 0.5 % of reading)

 Repeatability

 ±1 %

 Signal output

 From 0.8 l/min (48 l/h)

 Medium temperature

 0...90 °C (non-freezing)

 Nominal diameter

 DN 15

 ② Hall effect sensor

 Nominal pulse rate Frequency output

 234 pulses/l
 Square wave frequency signal, NPN open collector

 Power supply

 4.5...24 VDC

 Electrical connection

 80 mm PVC cable with Molex Mini-Fit® Jr. plug connector
 (part number 0039014036)
 optional: 0.5 m PVC cable or 1 m PVC cable
