Acoustic

 Microphones

 64 low-noise MEMS microphones

 Bandwidth

 0 kHz to 96 kHz

 Distance

 0.3m~100m

 Acoustic Image Palette

 White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red

 Dynamic Range

 Low Limit: <-15dB

 High Limit: >120dB

 Leak Rate

 >0.008 l/min @ 6 bar from 0.5 m

 >0.013 l/min @ 5 bar from 1 m

 Discharge Detection

 Automatic detection 50 / 60 Hz

 Discharge Type

 Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge

 Data Storage and Communication

 Storage Media

 Removable 64 GB SD Card

 Image Storage Capacity

 20,000 images

 Annotations

 Voice note: max. 60 seconds;

 Text note: max. 255 characters

 Video Storage Capacity

 60 hours

 Video File Format

 MP4

 General

 Display

 800 × 480 Resolution, 4.3’LCD Touch Screen

 Digital Zoom

 1.0x to 16.0x continuous

 USB Interface

 USB Type-C

 HDMI Interface

 HDMI-D

 Battery Operating Time

 Approx. 3.5 hours

 Battery Type

 Dis-mountable and Rechargeable Li-ion Battery

 Battery Charging Time

 5 hours to full charge

 Protection level

 IP54

 Power Supply

 5V DC/2A (Charging via USB)

 Working Temperature Range

 -20 °C to 50 °C

 Storage Temperature Range

 -20 °C to 60 °C

 Approvals

 CE, UKCA, RCM, ICES, KC

 Relative Humidity

 <90 % non-condensing

 Weight

 Approx. 940 g

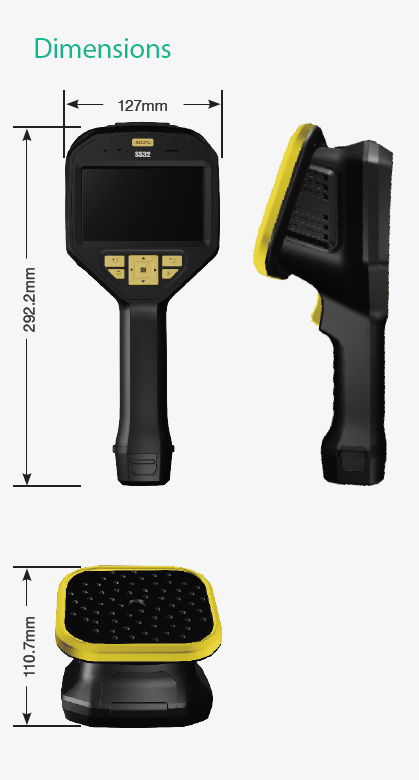

 Dimension

 292.2 × 127 × 110.7 mm

 (11.50 × 5.00 × 4.36 in)
