Measurement

 Flow

 Accuracy

 1.5 % of reading

 Selectable units

 m³/h, m³/min, kg/h, t/h

 Measuring range

 see table below

 Repeatability

 0.5 % o.RDG

 Sensor

 Vortex

 Turndown ratio

 1:10

 Consumption

 Selectable units

 m³, kg, t

 Signal / Interface & Supply

 Analog output

 Signal

 4 ... 20 mA (4-wire), isolated

 Scaling

 0 ... max flow, freely adjustable

 Update rate

 Value updated ever 1 sec

 Frequency output

 Measuring range

 0~2000 Hz

 Fieldbus

 Protocol

 Modbus/RTU

 Update rate

 Value updated ever 1 sec

 Supply

 Voltage supply

 24VDC

 General Data

 Display

 Integrated

 LCD display

 Material

 Process connection

 Carbon steel /304/316/316L(Flange/Wafer)

 Housing

 SUS 304

 Sensor

 SUS 316

 Metal parts

 SUS 304

 Miscellaneous

 Electrical connection

 1/2”-14NPT

 Protection class

 IP65

 Process connection

 wafer

 Weight

 depends on pipe size - please enquire if needed

 Operating conditions

 Medium

 Saturated steam

 Medium temperature

 -40 ... +250 °C

 Operating pressure

 0 ... 1.6 MPa (applicable for option 2.5MPa or 4.0MPa)

 Ambient temperature

 -10 ... +60 °C

 Ambient humidity

 < 99 % rH

 Storage temperature

 -10 ... +60 °C

 Transport temperature

 -10 ... +60 °C

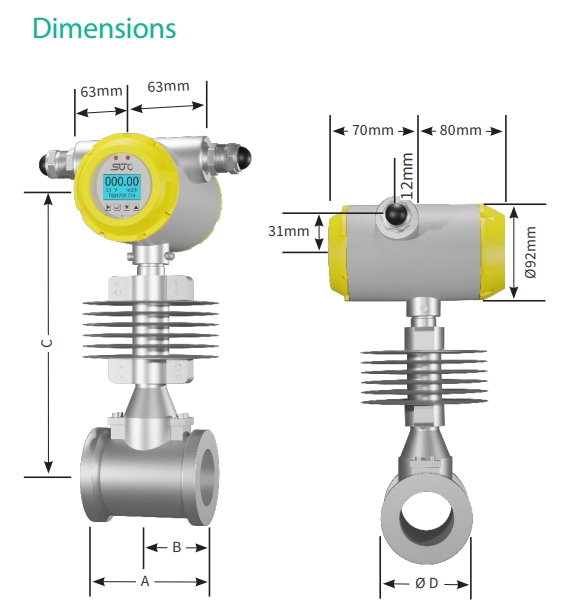

 Pipe sizes

 DN25 ... DN300

 Measuring Ranges

 Saturated Steam Mass Flowrate (Unit: t/h)

 DN (mm)

 0.20 MPa

 0.40 MPa

 0.60 MPa

 0.70 MPa

 0.8 MPa

 1 MPa

 DN50

 0.06

 0.6

 0.094

 0.94

 0.13

 1.3

 0.15

 1.5

 0.16

 1.6

 0.2

 2

 DN65

 0.1

 1

 0.16

 1.6

 0.22

 2.2

 0.25

 2.5

 0.28

 2.8

 0.34

 3.4

 DN80

 0.15

 1.5

 0.24

 2.4

 0.33

 3.3

 0.38

 3.8

 0.42

 4.2

 0.52

 5.2

 DN100

 0.24

 2.4

 0.38

 3.8

 0.52

 5.2

 0.6

 6

 0.66

 6.6

 0.8

 8

 DN125

 0.37

 3.7

 0.59

 5.9

 0.81

 8.1

 0.93

 9.3

 1.03

 10.3

 1.27

 12.7

 DN150

 0.53

 5.3

 0.85

 8.5

 1.17

 11.7

 1.34

 13.4

 1.5

 15

 1.83

 18.3

 DN200

 0.95

 9.5

 1.5

 15

 2

 20

 2.4

 24

 2.6

 26

 3.2

 32

 DN250

 1.48

 14.8

 2.36

 23.6

 3.25

 32.5

 3.72

 37.2

 4.2

 42

 5

 50

 DN300

 2.1

 21

 3.4

 34

 4.6

 46

 5.4

 54

 6

 60

 7.3

 73
