디스플레이제품
TG4200
- 제조사 : GMS-Korea
- 제조국 : Korea
•적산값 (10 digits), 순시값 (4 digits)
•다양한 입력 (pulse, volt, mA)
•Batch control 기능
•RS 485 interface
•다양한 입력 (pulse, volt, mA)
•Batch control 기능
•RS 485 interface
DOWNLOAD
제품사양
Measuring and display cycle
| Rate value : 200ms(Volt, mA input) Total count : 1s(Volt, mA input) Pulse input : on basis of frequency |
Input resistance
| Volt, mA input - 1000㏀ Pulse input - 1 ㏁ |
| Built-in Sensor power | DC 12V(24V option) |
Rate accuracy
| Linearity : 0.05% FS Repeatability : 0.1% FS |
Totalized function | Data preservation : More than 10 years Max count : 10 Digit |
Pulse output |
Output : Isolation open collect Max frequency : 5Hz or Less |
| Isolation current output | Current : DC 4.00~20.00mA |
Alarm(Option) | Contact output type : Normal open(standard) Max switching power : 60W, 125VA Max switching voltage : DC 220V, AC 250V Max switching current : DC 2A, AC Max Carrying current : DC 3A, AC |
Ambient temperature & Humidity | Operation : -10~50℃, 10~90% Storage : -20~70℃, 5~95% |
Power supply | Voltage : AC 85~265V(45~65Hz) DC 24V(option) Power consumption : Max 4VA |
Communication Interface (option) | Type : RS-485 Speed : 4800, 9600, 19200bps |

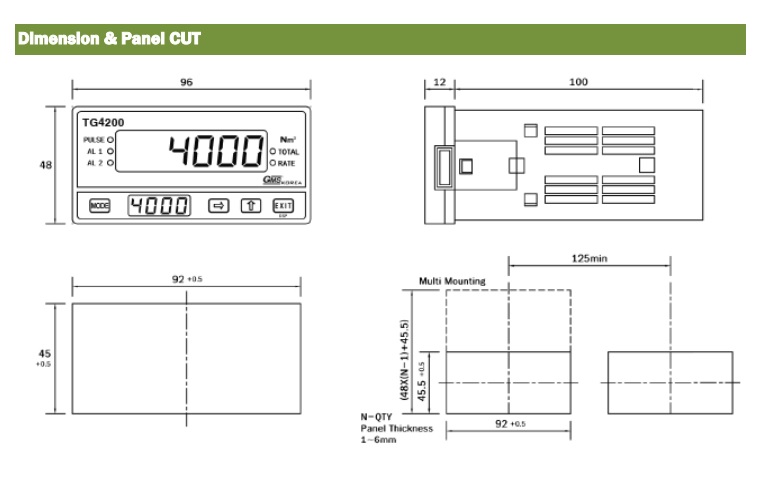

Etc | Weight : 500g Mounting : Panel mount [96(W) × 48(H) × 112(D)mm] |
