VMM Series

제조사 : SIKA Dr. Siebert & Kühn GmbH & Co. KG
제조국 : Germany

•구동부가 없어 내구성이 뛰어남
•Maintenance-free
•전류 및 펄스출력으로 외부기기와 호환 및 자동화시스템에 최적

DOWNLOAD

카달로그
DOWNLOAD

제품 사용 설명서
DOWNLOAD

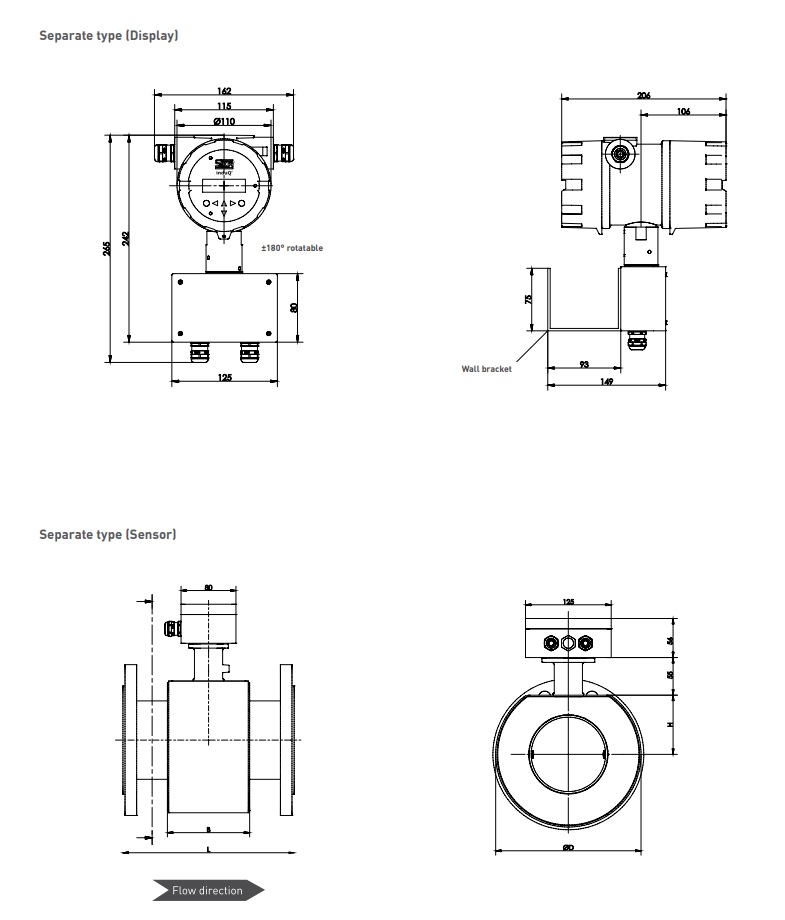

제품 도면
DOWNLOAD

제품목록

제품사양

Type VMM15 VMM25 VMM32 VMM40 VMM50 VMM65 VMM80 VMM100 VMM125 VMM150 VMM200
Characteristics
Nominal diameter DN 15 DN 25 DN 32 DN 40 DN 50 DN 65 DN 80 DN 100 DN 125 DN 150 DN 200
Process connection Flange connection in accordance with EN 1092-1, JIS B2220 10K or ANSI B16.5
Flow range
  → Flow velocity [m/s]

0...10
→ Volumetric flow [m³/h] 0...6.3 0...17.6 0...28.9 0...45.2 0...70.6 0...119.4 0...180.9 0...282.7 0...441.7 0...636.1 0...1130

Accuracy*
   v = 1...10 m/s
    v < 1 m/s
additionally


    Frequency output

    Analogue output

±0.5 % of reading
±0.4 % of reading ±1 mm/s



±0.05 % per 10 K

±0.1 % per 10 K

Repeatability ±0.15 %
Response time < 100 ms (Depending on the electronics settings)
Signal output
starting from
> 0 m/s

Medium /
Min. conductivity
of medium

Water and other conductive liquids /
20 μS/cm

Medium temperature
→ Hard rubber
  → PTFE


→ Process connections
→ Process connections

0...90 °C
-20...100 °C at 40 bar
-20...130 °C at 25 bar
-20...180 °C at 16 bar (only for separate version)
Min. -10 °C (steel)
Min. -20 °C (stainless steel)

Ambient temperature

→ Hard rubber

→ PTFE

→ Process connections

→ Process connections

→ Display

0...80 °C

-20...100 °C
Min. -10 °C (steel)
Min. -20 °C (stainless steel)
-20...50 °C (The readability of the LCD display is restricted below 0 °C)
Storage and
transport temperature
-20...60 °C

Pressure rating

→ EN1092-1



→ JIS B2220 10K

→ ANSI B16.5 150 RF

PN 40

PN 40

PN 40

PN 40

PN 40

PN 16**
PN 40

PN 16
PN 40

PN 16
PN 40

PN 16
PN 40

PN 16
PN 40

PN 10
PN 16
PN 25
PN 40
9.8 bar
19.6 bar (Process connection, steel)
15.9 bar (Process connection, stainless steel)
Display / Operation LCD two-line, backlight / 6 keys, menu-driven

Degree of protection EN
60529

IP67

* Reference conditions: Media temperature 10...30 °C; Ambient temperature 20...30 °C; warm-up period 30 min.; straight pipe lengths;

inlet 5 x DN, outlet 2 x DN, regularly centered and earthed
** 8 bolt flanges

Output singals
Type	VMM15	VMM25	VMM32	VMM40	VMM50	VMM65	VMM80	VMM100	VMM125	VMM150	VMM200
Pulse / frequency output
→ Configuration	Pulse signal or frequency signal selectable
Pulse output
→ Pulse rate (factory-set) [1/m³]	1000	1000	1000	1000	1000	1000	1000	1000	100	100	100
→ Pulse significance	≤ 1000 Pulse/s
→ Pulse width	≥ 0.1 ms (max. 2 s), adjustable
→ Signal shape	Squarewave signal
Frequency output
→ Factory-scaled measuring range corresponds to 0...1 kHz [m³/h]	0...3	0...10	0...10	0...10	0...20	0...50	0...50	0...70	0...100	0...150	0...250
→ Frequency	0...1 kHz
→ Signal shape	Squarewave signal
Analogue output
→ Factory-scaled measuring range corresponds to 4...20 mA [m³/h]	0...3	0...10	0...10	0...10	0...20	0...50	0...50	0...70	0...100	0...150	0...250
→ Operating range	0 ... 20 mA / 4 ... 20 mA, selectable
→ Current limitation	21.6 mA
→ Max. burden	600 Ω
→ Short-circuit proof	Permanent
Alarm output
→ Quantity	1
→ Version	Optocoupler
→ Function	Status output: Preflow, backflow, MIN flow rate, MAX flow rate, alarm (adjustable)
→ Switching values	Umax: 30 V; Imax: 60 mA; Pmax: 1.8 W

Electrical data
Electrical connection	Cable gland M20 x 1.5
Power supply	230 VAC (-15 % / +10 %), 50/60 Hz or 115 VAC (-15 % / +10 %), 50/60 Hz or 18...36 VDC
Power consumption	15 VA
