전자유량계
EX100/200 Series
- 제조사 : SeaMetrics Incorporated
- 제조국 : U.S.A
•삽입형의 전자유량계
•배관 사이즈: 3"~48" (up to 72" optional)
•No moving parts
•설치가 용이하며, 유지보수가 간편함
•배관 사이즈: 3"~48" (up to 72" optional)
•No moving parts
•설치가 용이하며, 유지보수가 간편함
DOWNLOAD

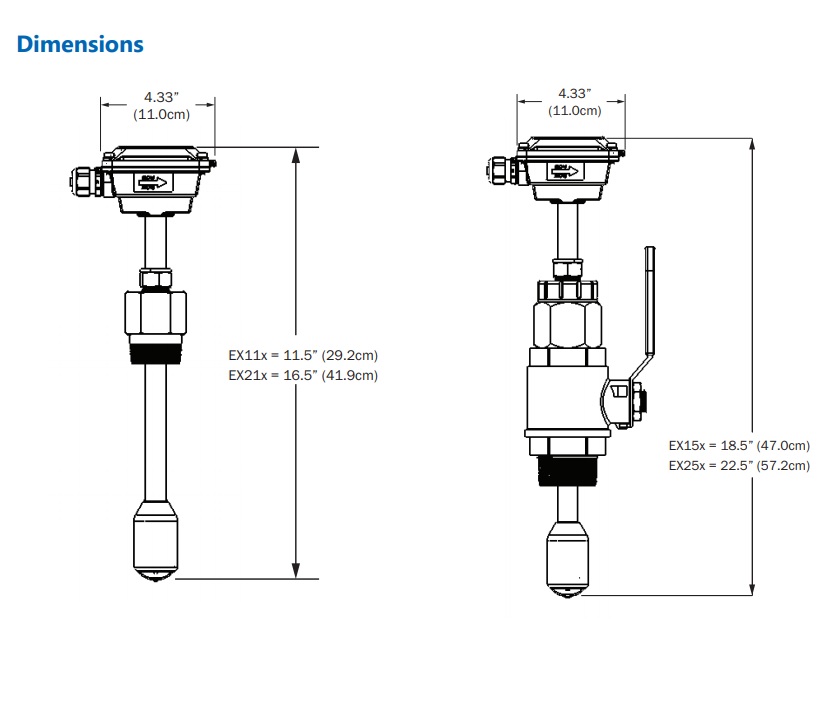

제품사양
| Specifications | ||
| Pipe Size | 3” to 48” (up to 72” optional) | |
| Power | Full Power: 12 - 24 Vdc, 250mA Low Power: 12 - 24 Vdc, 40mA average with 250mA peaks | |
|
Materials
| Housing | Powder-coated cast aluminum |
| Tubing/Fitting/Sensor Housing | Brass or 316 Stainless Steel | |
| Electrodes | Hastelloy | |
| Electrode Cap | PVDF | |
| O-Ring (15x/25x only) | EPDM | |
| Valve Assembly (15x/25x only) | Bronze (stainless optional) with bronze ball valve | |
| Fitting Size Required | 11x/21x: 1.5” FNPT 15x/25x: 2” FNPT | |
| Maximum Pressure | 200 psi (14 bar) | |
|
Temperature | Ambient | 0˚ to 160˚ F (-17˚ to 72˚ C) |
| Fluid | 32˚ to 200˚ F (0˚ to 93˚ C) | |
| Minimum Conductivity | 20 microSiemens/cm | |
| Flow Velocity | 0.28 - 20 ft/sec (0.08 - 6.09 m/sec) | |
| Accuracy | ± 1% of full scale | |
| Output | Square wave pulse, opto-isolated, 500 Hz @ 20 ft/sec 6 mA max, 30Vdc forward flow standard; reverse flow optional | |
| Empty Pipe Detection | Software, defaults to zero flow | |
|
Cable | Standard 18’ (6m), #22 shielded twisted pair, 4-conn. Max. cable run at 24 Vdc = 1000’ (300m); at 12 Vdc = 500’ (150m). For other circumstances, contact the factory. | |
| Environmental | See meter mounted electronic specification for rating. | |
|
Flow Range (GPM) | ||
|
Nominal Pipe Size |
Minimum Flow |
Maximum Flow |
|
3 |
6 |
440 |
|
4 |
11 |
783 |
|
6 |
25 |
1,762 |
|
8 |
44 |
3,133 |
|
10 |
69 |
4,895 |
|
12 |
99 |
7,050 |
|
14 |
134 |
9,596 |
|
16 |
175 |
12,533 |
|
18 |
222 |
15,863 |
|
20 |
274 |
19,584 |
|
24 |
395 |
28,200 |
|
30 |
617 |
44,064 |
|
36 |
888 |
63,452 |
|
48 |
1,580 |
112,804 |
