Signal / Interface & Supply

 General data

 Input signals

 Configuration

 Digital input

 1 x SDI for dew point and flow sensors

 PC Software

 Analog input

 1 x 0 ... 20 mA or 1 x 4 ... 20 mA or

 Display

 Pulse input

 1 x 0 ... 10 V

 Integrated

 Graphic display, 220 x 140 pixels with back light

 Output signals

 Material

 Alarm output

 2 relays, 230 VAC, 3 A

 Housing

 ABS

 Electrical data

 Miscellaneous

 Power supply

 100 ... 240 VAC, 15 VA (option A1640)

 Protection class

 IP65

 18 ... 30 VDC, 15 VA (option A1641)

 Approvals

 CE

 Sensor supply

 24 V, 10 W

 Weight

 0.52 kg

 Data interface

 Housing

 Panel, wall mountable

 Connection

 USB to PC

 Dimensions

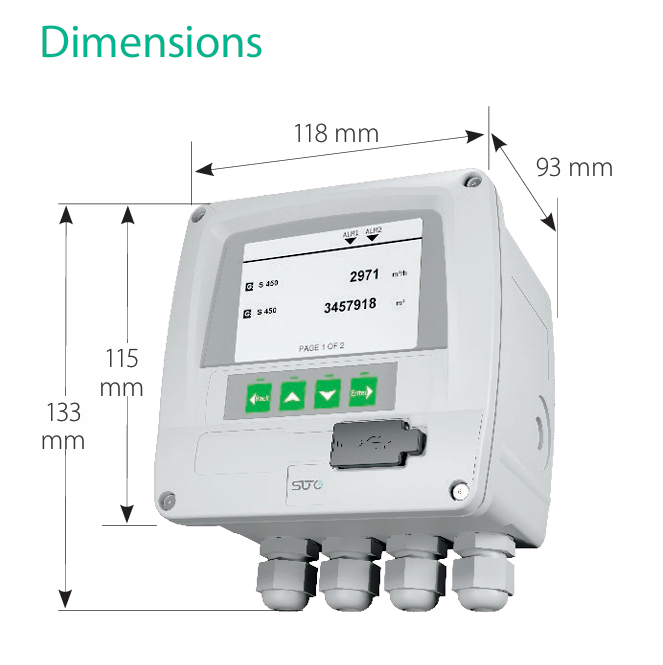

 See dimensional drawing

 Operation

 Keyboard, 4 keys

 Cable entry diameter

 4.5 … 8 mm

 Cable

 Supply: AWG12 ... AWG24, 0.2 ... 2.5 mm²;

 Signals: AWG16 ... AWG28, 0.14 ... 1.5 mm²

 Weight

 0.52 kg

 Operating conditions

 Ambient temperature

 0 ... +50°C

 Ambient humidity

 <90%

 Storage temperature

 -20 ... +70°C

 Transport temperature

 -30 ... +70°C
